Achieving high-strength shear walls with increased design flexibility! Screws with environmentally friendly surface treatment.

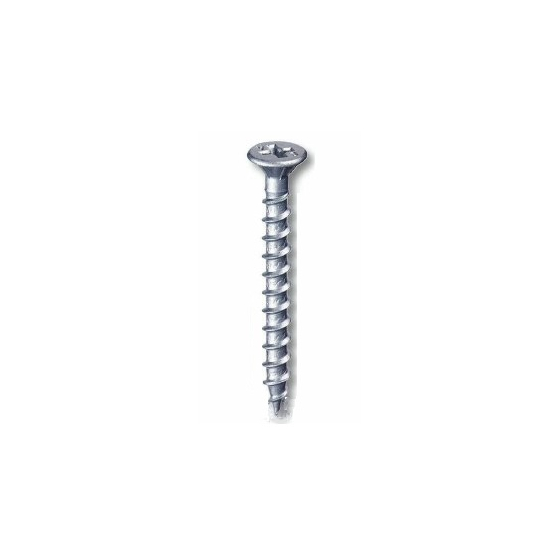

The "GH5 screw" allows for the creation of high-magnitude (5.0 and 3.6) shear walls simply by fastening 9mm thick structural plywood (JAS) with a dedicated screw (GH5 screw), without the use of special materials. It has obtained the highest ministerial certification for wooden frame wall magnification of 5.0. While ensuring seismic resistance, it enables open space design, increasing design flexibility. Additionally, it features an environmentally friendly surface treatment with Defense Coat Silver (chrome-free). 【Features】 ■ Ministerial certification from the Ministry of Land, Infrastructure, Transport and Tourism ■ Applicable construction method: Conventional frame construction with large wall specifications ■ Environmentally friendly surface treatment ■ Compatible with interior (back) Japanese-style room (true wall) specifications ■ Quick installation using roll connection *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Product Name: GH5 Screw ■Model Number: GH-41-DNR ■Size: 4.2×41 ■Material: Iron ■Surface Treatment: Defense Coat Silver (Chrome-Free) ■Carton Quantity: 100 pieces × 20 rolls *For more details, please refer to the catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
