Anytime, anywhere, for anything! Easy and convenient micro-nano bubble generation device 'Foamest Column Series'
The 'Foamest Column Series' creates bubbles that cannot be found anywhere else using our unique bubble generation method (porous membrane method). This is the basic model of the Foamest series. By simply supplying pressurized gas, it generates B.nano using a special film. There is a wide range of sizes available, allowing you to choose the optimal length and diameter to suit your location. Additionally, we can accommodate custom specifications. There are FP series without covers and KFP series with covers. Once you attach a regulator to the compressor and connect it to the column, just dip it into the tank. If you use a gas cylinder instead of a compressor, it can operate completely without power. It enables easy and convenient generation of nanobubbles. *Please use an oil-free compressor or use it in conjunction with an oil mist filter. In addition to a variety of product sizes, we also accept special specifications according to your requests. Please feel free to contact us.
Inquire About This Product
basic information
【Specifications (Standard Product)】 ■Model Name: Foamest Column Type ■Overall Length & Weight: Please refer to the catalog ■Main Body: PP, ABS, PVC, SUS ■Gases Used: Air, O2, CO2, N2, etc. ■Operating Pressure Range: 0.05 to 0.2 MPa ■Maintenance (once a year): Film replacement *Customization and special specifications are available upon request. How to Use the Column Series Agriculture Suitable for both soil and hydroponics. It assists in nutrient absorption for plants and promotes growth. Particularly effective during the seedling stage, resulting in robust crops with excellent root development. Mixing with pesticides can enhance effectiveness and reduce the amount needed. Aquaculture Used in aquaculture tanks to prevent oxygen deficiency in living organisms. The soft bubbles minimize stress on the organisms, promoting growth while reducing mortality rates. It also activates bacteria in the filter, aiding in water purification. Factory Mixing bubbles in wastewater treatment tanks separates SS and oil from the wastewater, reducing the burden on treatment facilities. It also helps clean dirt that has adhered to tanks and pipes.
Price range
P2
Delivery Time
P2
※Delivery times may vary for special specifications. Please contact us.
Applications/Examples of results
Cleaning: Prevention of plating liquid dripping, removal of fine particles, etc. Wastewater treatment: Attachment and flotation separation of turbid liquids, improvement of activated sludge capacity, etc. Processing: Improvement of cutting efficiency, increase in liquid lifespan, etc. Agriculture and fisheries: Promotion of plant growth, improvement of soil and water quality, oxygen supply to fish ponds, etc. For more details, please contact us.
Detailed information
-
Characteristics of B.nanao - Stays in water for long periods - Low buoyancy → penetrates fine gaps - Large specific surface area → dissolution and reactions proceed quickly - High internal pressure → difficult to break and combine - Carries a negative charge → adsorbs to positively charged substances Applications of B.nano - Waste liquid treatment → adsorbs and floats dirt, activates microorganisms with oxygen supply - Cleaning → penetrates and removes dirt - Food → foamed food, reduced soaking time - Water quality improvement → reduction of BOD/COD values and normal hexane through oxygen dissolution - Agriculture → promotes nutrient absorption, activates soil microorganisms
-
Foamest Series Bubble Generation Methods ○ Porous Membrane Method This method generates micro-nano bubbles in water by passing pressurized gas through the fine pores of a film. - Can produce a large number of bubbles - Can create small bubbles - Does not require water flow - Resistant to clogging - Inexpensive ○ Water Flow Cut Method This method combines the porous membrane method with water flow. It can produce a more uniform and greater number of bubbles compared to the porous membrane method. Both methods are unique and can create bubbles that cannot be produced elsewhere.
-
The foam generated by the Foamest series is named B.nano (trademark). It can produce bubbles even at great depths due to its internal pressure.
-
How to use Foamest
-
Electricity usage of Foamest
-
Utilization of Foamest 1
-
Utilization of Foamest 2
-
Utilization of Foamest 3
-
Utilization of Foamest 4

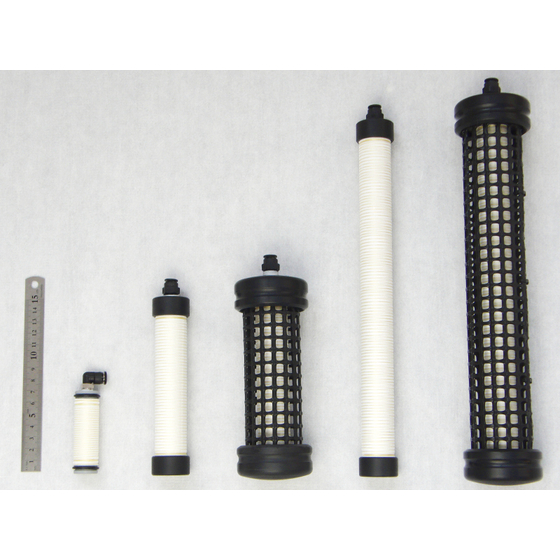

Line up（12）
| Model number | overview |
|---|---|
| FP20-70 | Size: φ20×70mm Weight: 40g Minimum size of standard products |
| FP20-150 | Size: φ32×150mm Weight: 250g |
| FP20-300 | Size: φ32×300mm Weight: 320g |
| FP40-300 | Size: φ57×300mm Weight: 1200g (with weight) |
| FP40-670 | Size: φ57×670mm Weight: 2000g (with weight) |
| FP40-1000 | Size: φ57×1000mm Weight: 2420g (with weight) |
| KFP20-150 | Size: φ32×150mm Weight: 410g (with protective cover) |
| KFP20-300 | Size: φ62×300mm Weight: 480g (with protective cover) |
| KFP40-300 | Size: φ96×300mm Weight: 22000g (with protective cover) |
| KFP40-670 | Size: φ96×670mm Weight: 3270g (with protective cover) |
| KFP40-1000 | Size: φ96×1000mm Weight: 3500g (with protective cover) |
| 201 | For coolant: 1. Purification and regeneration of cutting fluid 2. Reduction of coolant odor 3. Improvement of cutting efficiency and longer tool life *Can also be used for oil separation in grease traps. |
