Quickly process muddy water from construction sites and similar locations! The installation area is about half that of conventional models, while the processing capacity is approximately doubled! Easy adjustment for operation management.
The water quality monitoring device, pump, and tank are all included as standard equipment in an all-in-one configuration. You only need to provide power and chemicals to start using it immediately. It is lightweight and compact, and installation is as simple as placing it down. Operation management is easy to adjust, making it user-friendly and highly recommended. 【Features】 ■ Compact and lightweight - Installation area is about half that of conventional models, with double the processing capacity - Can be transported by a 4-ton truck ■ Improved installation workability - No need for piping or wiring work between units - Easy to move without special lifting equipment ■ Easy management - Flow rate adjustment can be done simply by dial setting - Alerts for chemical replenishment and abnormal effluent water quality via a patrol light - Automatically cleans the line when the raw water pump stops - Capable of stable, high-performance processing - Turbidity, pH, and flow rate management are standard features *For more details, please contact us at the address below or download the catalog.
Inquire About This Product
basic information

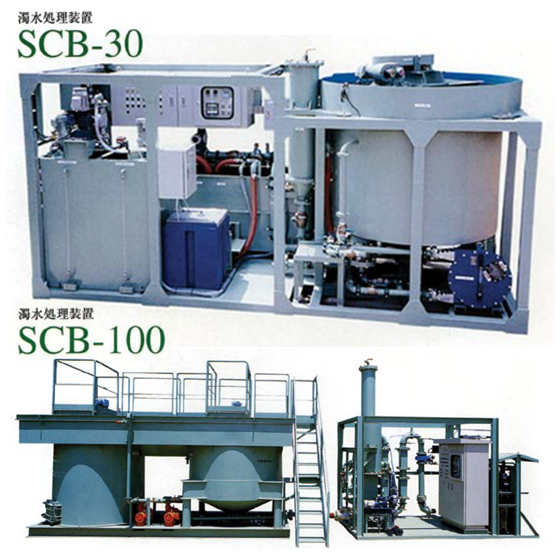

■Specifications (The parts in parentheses () are for the SCB-100) Item SCB-30 (SCB-100) Processing Capacity Max 30 square meters (Max 100 square meters) Dimensions W2,050 × L5,000 × H2,450 (W2,350 × L10,400 × H3,900) Total Power 12.1 kW (25 kW) Total Weight 3,800 kg (6,600 kg) Standard Raw water pump (INV), chemical dosing pump, sludge extraction pump Raw water tank, discharge tank, chemical tank, discharge pump (circulation pump) Water quality monitoring device [flow rate, pH, turbidity], CO2 controller High-speed coagulation and separation device [patent pending] Line mixer, chemical reaction tower Options Pre-treatment device [acidic pH neutralization] Various tanks and pumps High-performance filter press PSE-750 type (200–300 liters) 【Features】 ■ Continuous operation possible (each process is automatically detected by sensors) ■ Reduces cake moisture content using compressed air (removes residual water with center blow before opening the frame. Also improves peelability) ■ Integrated design of upper and lower tanks (*Excerpt from catalog)
Price range
Delivery Time
Applications/Examples of results
Turbid water treatment
catalog（1）
Download All Catalogs
Company information
For plant, equipment, and machinery rental and manufacturing through system design, contact Sanou Co., Ltd.! We provide rental and sales of various treatment plants for soil and water in the fields of environmental restoration, including mud water, turbid water, and dredging treatment, through machinery manufacturing and system design.
