A fine mist with a large flow rate (1L/min) can be obtained at a water pressure of approximately 0.2MPa.

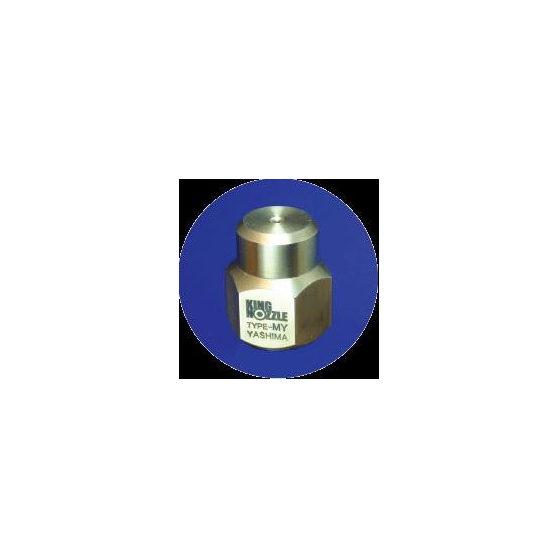

The 【TYPE-MY】 is a metal spray nozzle that can produce a large volume of fine mist at a low pressure of 0.2 to 0.3 MPa (approximately the pressure of tap water). It contains fine mist particles around 10 µm and relatively larger particles of about 250 µm, so it is not a dry mist. However, in outdoor settings where water saturation is not an issue, it provides cooling through latent heat with a large amount of fine mist, as well as cooling effects from the wetting effect. - In gardens and rooftop gardens: It sprays upwards, simultaneously achieving cooling and watering effects in the surrounding atmosphere, as well as visual effects. - On building rooftops: The fine mist and wetting effects cool the surrounding area of the rooftop, allowing for watering and cooling of the rooftop surface, which can reduce the air conditioning load of the building. - In sports fields, golf courses, tennis courts, and outdoor pools: A cool breeze containing droplets can be generated, providing effective measures against heat.
Inquire About This Product
basic information
General mist nozzles require auxiliary machinery such as high-pressure pumps or air compressors to generate fine mist with a particle size of 40 micrometers or less. Moreover, the amount of spray water per nozzle is very small, necessitating an increase in the number of nozzles for latent heat cooling in large spaces, which contributes to higher costs. Therefore, TYPE-MY was developed as a nozzle that can achieve a large volume of fine mist using a low-pressure general-purpose pump, similar to tap water pressure. The applications are diverse, including latent heat cooling outdoors where water wetting is not an issue, irrigation, visual effects, humidification in agricultural greenhouses, and dust and odor control at construction sites. - Spray shape: Full cone - Material: Body - Brass, Filter - SUS - Mounting thread: 1/2” female - Spray direction: Straight - Spray angle: 75° - Flow rate: 1.0 L/min (@0.2MPa) - Average particle diameter: 162 micrometers = For more details, please refer to the catalog. =
Price information
Please contact us.
Delivery Time
P2
※Depending on the quantity, there may be a lead time. Please contact us.
Applications/Examples of results
[Applications/Examples of Achievements] - Outdoor latent heat cooling and watering effect - Sprinkling in gardens and sports fields - Visual effects in zoos and aquariums - Humidification and disinfection in agricultural houses and livestock barns - Dust and odor control at construction sites - Others
Detailed information
-
King Nozzle TYPE-MY Series With a water pressure of around 0.2MPa, a large volume (1L/min) of fine mist can be achieved.
-
Spray nozzle "King Nozzle" TYPE-MY With a water pressure of about 0.2 MPa, a large volume of fine mist can be obtained.
catalog（1）
Download All Catalogs
Company information
- It has been over half a century since we began manufacturing the resin water spray nozzle "King Nozzle." - We have continuously improved it and manufacture it using injection molding of polypropylene (PP) resin. - It has excellent chemical resistance and can be used for spraying various aqueous solutions, including acids and alkalis. - We achieve low prices due to mass production effects, as well as uniformity and high quality through sophisticated molds. - Depending on the spray shape and flow rate, we offer various types of nozzles that can be selected to meet the needs of different industries. - Spray shapes: Full cone type, hollow cone type, flat type - Applications: Cleaning, humidifying, cooling, watering, defoaming, snow melting, stirring, and more.
