The spray nozzle has a curve for wide-angle spraying applications.

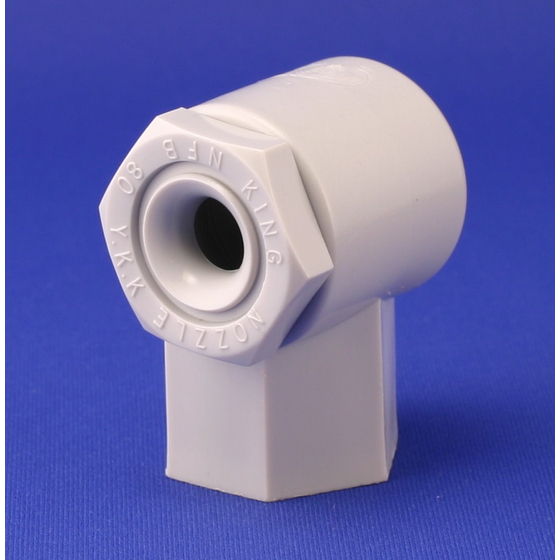

The 【TYPE-NFB】 is a PP (polypropylene) spray nozzle with a hollow cone spray type. It shares the body with TYPE-NF. Due to the rounded edges around the spray opening, it has a large spray angle, allowing for wide-angle spraying. Among the King Nozzle series, it generates relatively fine mist particles, making it ideal for cooling and humidifying. It is also suitable for air cleaning applications such as air washers and scrubbers, as well as for irrigation in agriculture and livestock, and for defoaming in wastewater treatment plants. Being made of resin, it is resistant to acids and alkalis, making it suitable for surface cleaning before painting or plating.
Inquire About This Product
basic information
Similar to TYPE-NF, the orifice (hole) inside the body is aligned with the centerline of the mounting screw and has a radius, allowing for smooth water flow. To generate a rotational flow, the spray nozzle is positioned eccentrically relative to the centerline of the mounting screw. Like TYPE-NF, it provides stable spraying with minimal clogging, and the radius at the nozzle allows for wide-angle spraying. With five sizes of orifices (Φ3, 4, 5, 6, 7 mm) and four sizes of spray nozzles (Φ5, 6, 7, 9 mm), various spray angles and water volumes can be achieved. - Material: PP (Polypropylene) - Mounting screw: 3/8” female - Spray direction: 90° - Spray angle: 112° to 128° - Average particle size: 400 to 480 µm - Flow rate: 2.1 L/min (at 0.05 MPa) to 39.2 L/min (at 0.5 MPa) = Please refer to the catalog for details. =
Price information
Please contact us.
Price range
P1
Delivery Time
P2
※Depending on the quantity, there may be a lead time. Please contact us.
Applications/Examples of results
[Applications/Examples of Achievements] - Ideal for cooling and humidifying - Air purification using air washers, scrubbers, etc. - Irrigation for agriculture and watering for livestock - Cleaning for surface treatment - Defoaming in water treatment plants, etc. - Watering for road cleaning vehicles
catalog（1）
Download All Catalogs
Company information
- It has been over half a century since we began manufacturing the resin water spray nozzle "King Nozzle." - We have continuously improved it and manufacture it using injection molding of polypropylene (PP) resin. - It has excellent chemical resistance and can be used for spraying various aqueous solutions, including acids and alkalis. - We achieve low prices due to mass production effects, as well as uniformity and high quality through sophisticated molds. - Depending on the spray shape and flow rate, we offer various types of nozzles that can be selected to meet the needs of different industries. - Spray shapes: Full cone type, hollow cone type, flat type - Applications: Cleaning, humidifying, cooling, watering, defoaming, snow melting, stirring, and more.
