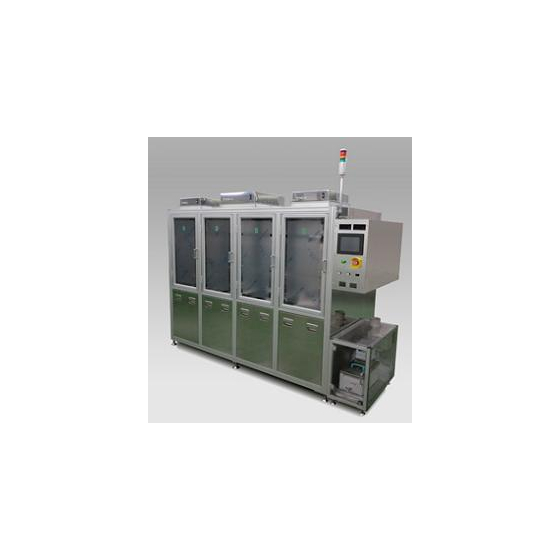

An efficient cleaning and drying integrated device that combines warm water drying.
This device is an automatic system designed to process cylindrical glass or metal materials in three different tanks according to set recipe parameters, handling each step automatically. It is a dip coater-type cleaning device that reflects the dip coating technology owned by SDI. It accommodates samples with a stroke of 590mm and dimensions of φ132mm × H250mm. In addition to ultrasonic cleaning, it performs warm water drying, efficiently achieving both cleaning and drying. It can be utilized for experiments as well as small batch processing. 【Features】 ○ An automatic system that processes cylindrical glass or metal materials in three different tanks according to set recipe parameters, handling each step automatically. ○ A dip coater-type cleaning device that reflects the dip coating technology owned by SDI.
Inquire About This Product
basic information
【Specifications】 ○ Stroke: 590mm ○ Target Size: φ132mm×H:250mm ○ Target Materials: Quartz glass, metal ○ Dip Speed: From 0.1mm/sec to 110mm/sec ○ Coating Liquid Circulation: Yes ○ Coating Liquid Temperature Control: Yes ○ Filter Mesh: No (optional available) ○ Drying Section: Yes ○ Drying Temperature: Room temperature ○ HEPA Unit: Yes ○ Device Size (approx.): W:2575×D:1100×H:1984mm ● For more details, please contact us.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Usage】 ○ Cylindrical glass or metal materials In research institutions, it is used for the pretreatment of nanomaterials and optical substrates, while in factories, it is utilized for process cleaning of prototype components. ● For more details, please contact us.
Line up（18）
| Model number | overview |
|---|---|
| NIC-1106 | A desktop model that achieves high-precision and stable release agent application for small-sized substrates. |
| NIC-1103 | 6 to 8 inch board compatible, versatile medium-sized nano coater. |
| NIC-0809 | Optimal for φ200mm substrates, a nano coater that supports a wide range of research and development. |
| NIC-1109G | Box-integrated design that achieves high-precision coating in an inert gas environment. |
| NIC-1208 | High-power model compatible with 600mm square substrates, achieving uniform coating of large samples. |
| NIC-1410-S1 | High-precision dip coater for small cubic samples, compatible with thicknesses up to 1.5mm. |
| NIC-1308 | Dedicated nano coater compatible with roll materials, capable of continuous coating. |
| DT-1104 | A dedicated device for achieving uniform coating on disk media. |
| MD-1501-S1 | Dip coating device with a circulation mechanism that enhances liquid stability and has high chemical resistance. |
| SA-1109 | High-precision cleaning of substrates and samples is possible with ultrasonic cleaning. |
| SA-1202 | An efficient washing and drying integrated device that combines warm water drying. |
| NIC-1510 | A high-performance model that balances tank replacement and cleaning, accommodating multiple uses. |
| MD-1802 | High-efficiency model enabling multilayer film formation and continuous processing with an 8-slot configuration. |
| LD-1811 | Linear type that achieves oxidation prevention and stable film formation through nitrogen purge. |
| NIC-2003 | Supports a maximum stroke of 1.3m, an ideal model for handling large circuit boards. |
| DT-1812 | Ideal for continuous process handling, flexible support for various prototypes with an 8-tank system. |
| DT-2002 | Specialized dip coater for cylindrical materials, compatible with diameters of 20 to 60 mm. |
| NIC-2409 | Nano coater for large cylindrical materials compatible with Φ200〜700mm sleeves. |
