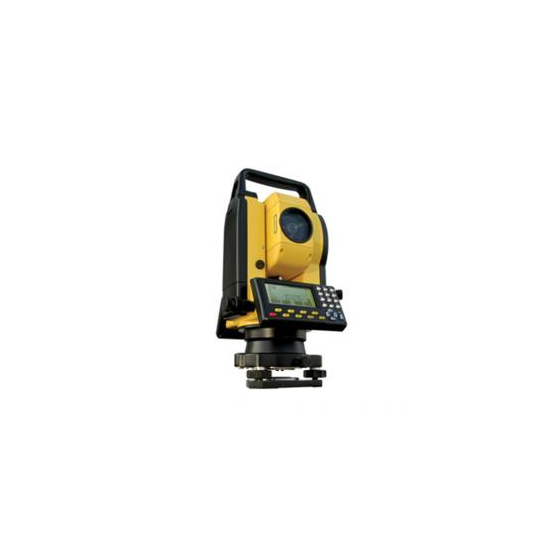

Measuring distance of about 200m. It is very convenient for use in places that are difficult to access or have heavy traffic.
Measurement is possible even in situations where a direct prism cannot be installed. Additionally, in current surveys, it is possible to measure the height of structures and adjacent buildings without having to go to the measurement point. *Please select a type according to your application from the options below:* - TSS-200G Side angle accuracy 3" leveling base: detachable - 200GS Side angle accuracy 3" leveling base: shift type - TSS-200 Side angle accuracy 5" leveling base: detachable - 200S Side angle accuracy 5" leveling base: shift type
Inquire About This Product
basic information
■Features - Non-prism distance measurement function - Further long-distance measurement using a prism - Reliable correction mechanism - Large capacity memory - Pinpoint distance measurement with small diameter visible laser - Bilingual backlit LCD display in Japanese ■Specifications Overall length: 150mm Image: Erect Effective aperture diameter: 45mm Magnification: 30x Field of view: 1°30′ Resolving power: 3.5″ Minimum focusing distance: 1.5m Stadia multiplier: 100 Stadia additive: 0 Reading method: Absolute encoder method Scale reading: Horizontal angle: both sides, Vertical angle: one side Minimum display: Selectable 1″/5″/10″
Price information
The price varies depending on the quantity, so please feel free to contact us.
Price range
P1
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Please feel free to contact us.
